SPECIFICATIONS

Brand Name: NEW BAIGO

Choice: yes

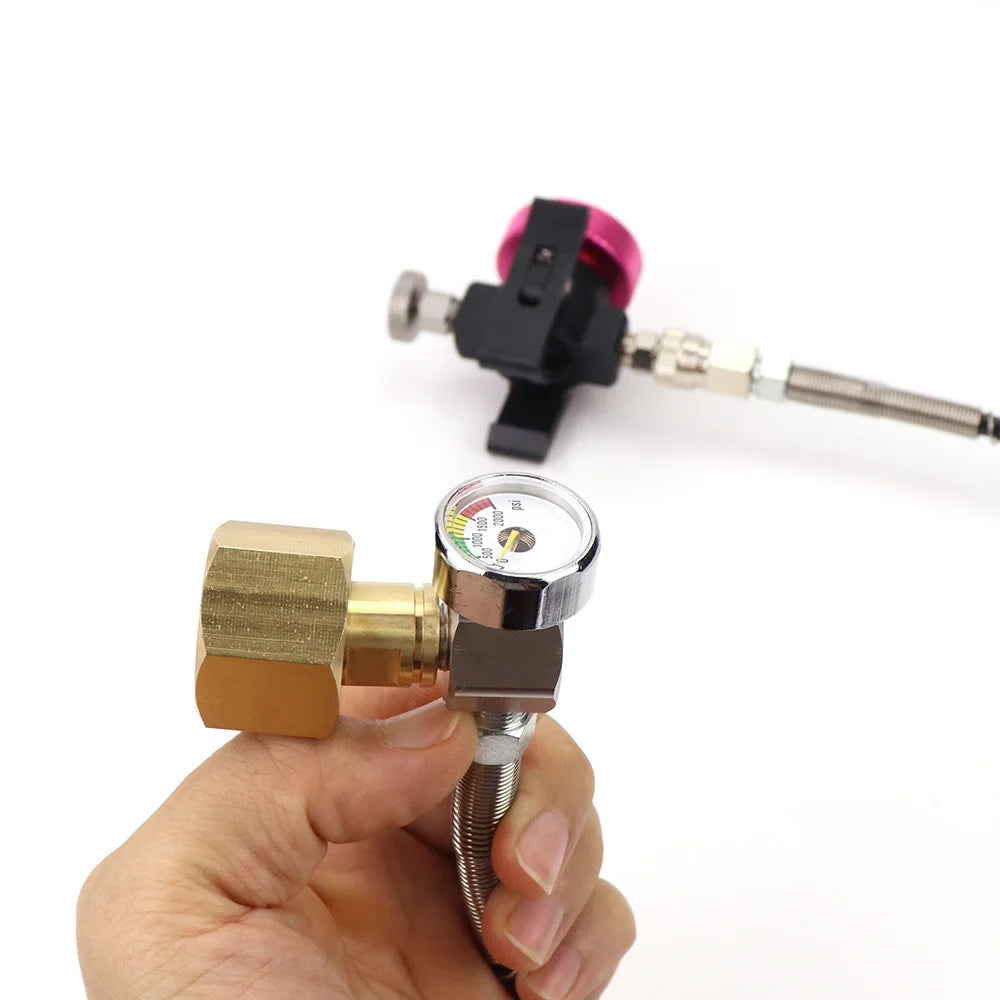

Gauge: 2000Psi Or 250Bar

Length: 24Inch Hose

Material: Copper

Model Number: Soda Refill Adapter

Origin: Mainland China

Thread To Big Bottle: CGA320 & W21.8-14(DIN 477) & G3/4

Type: Air Systems

Weight: 400G

semi_Choice: yes

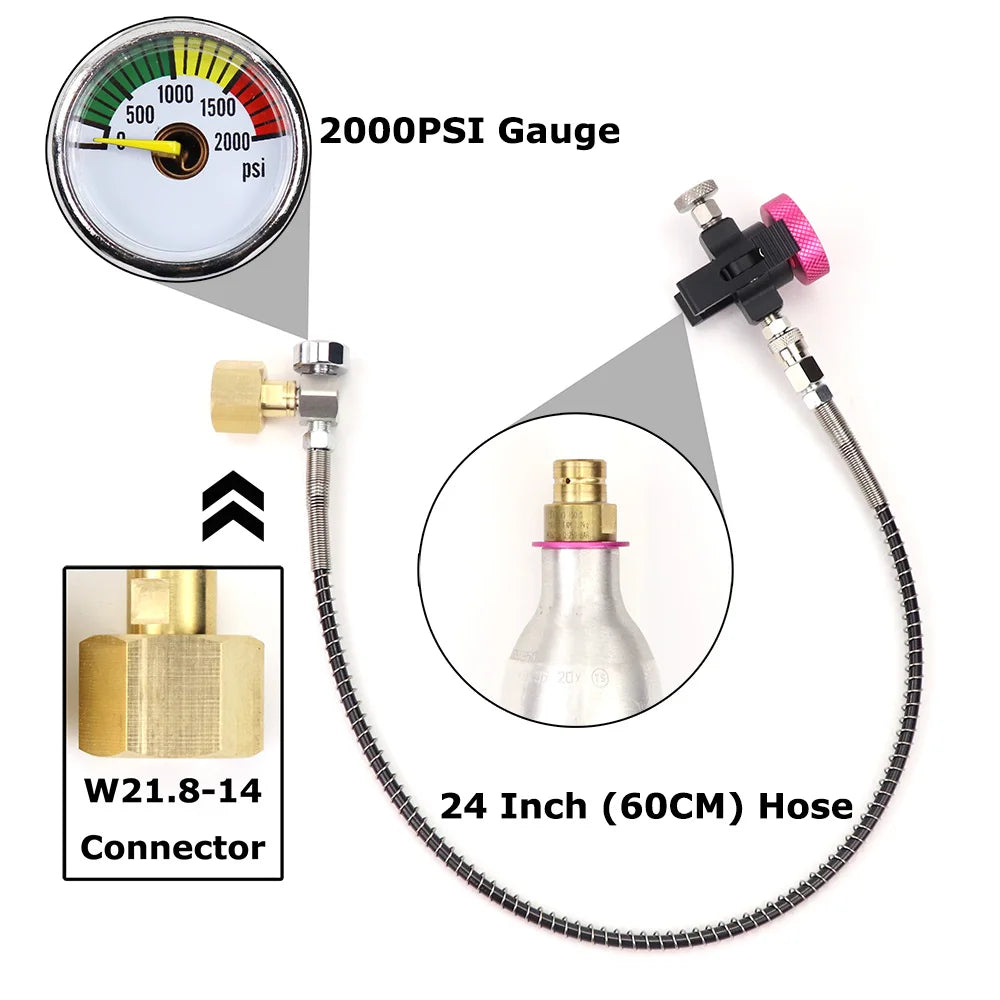

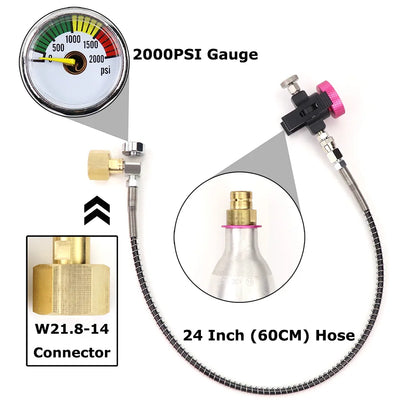

Soda Pink Quick Connect CO2 Cylinder Refill Station Adaptor

Details

• Heavy Duty Tank Connector.

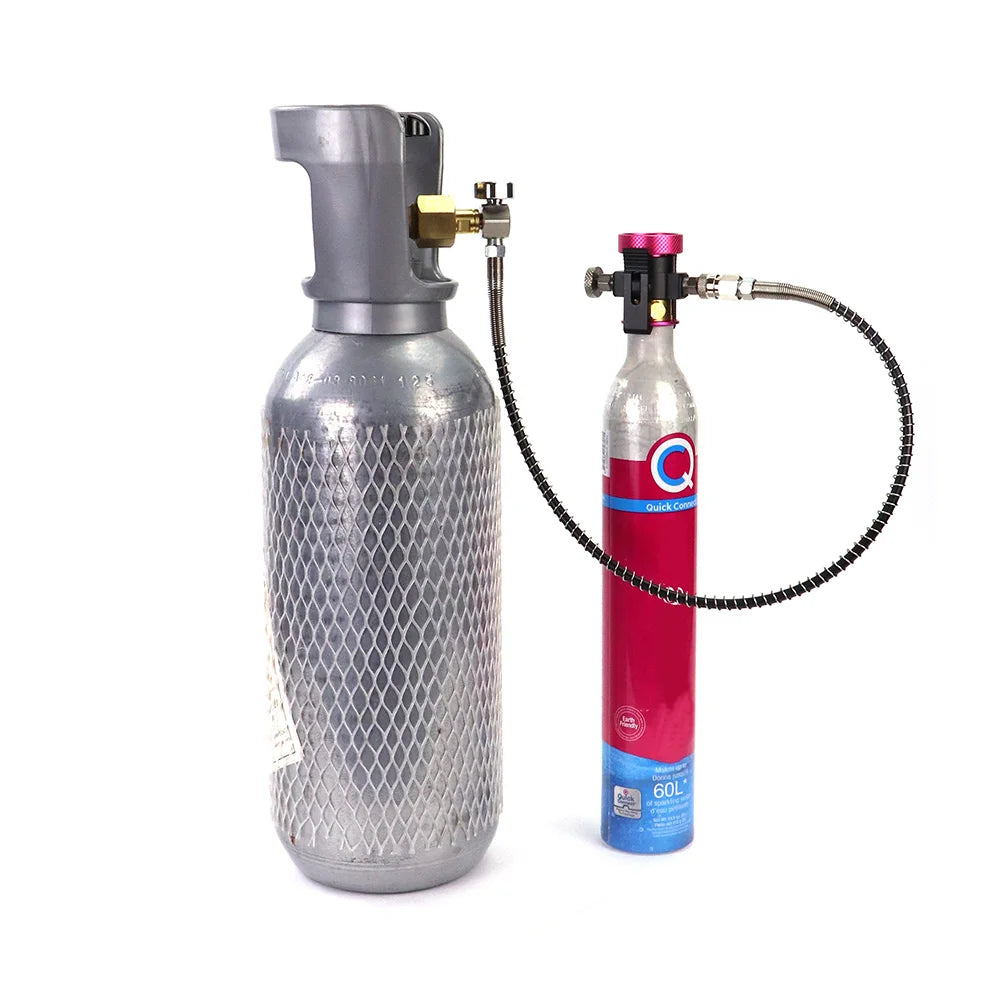

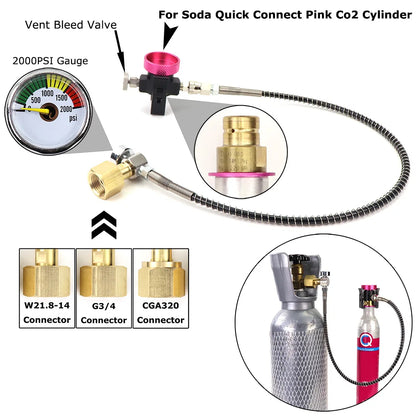

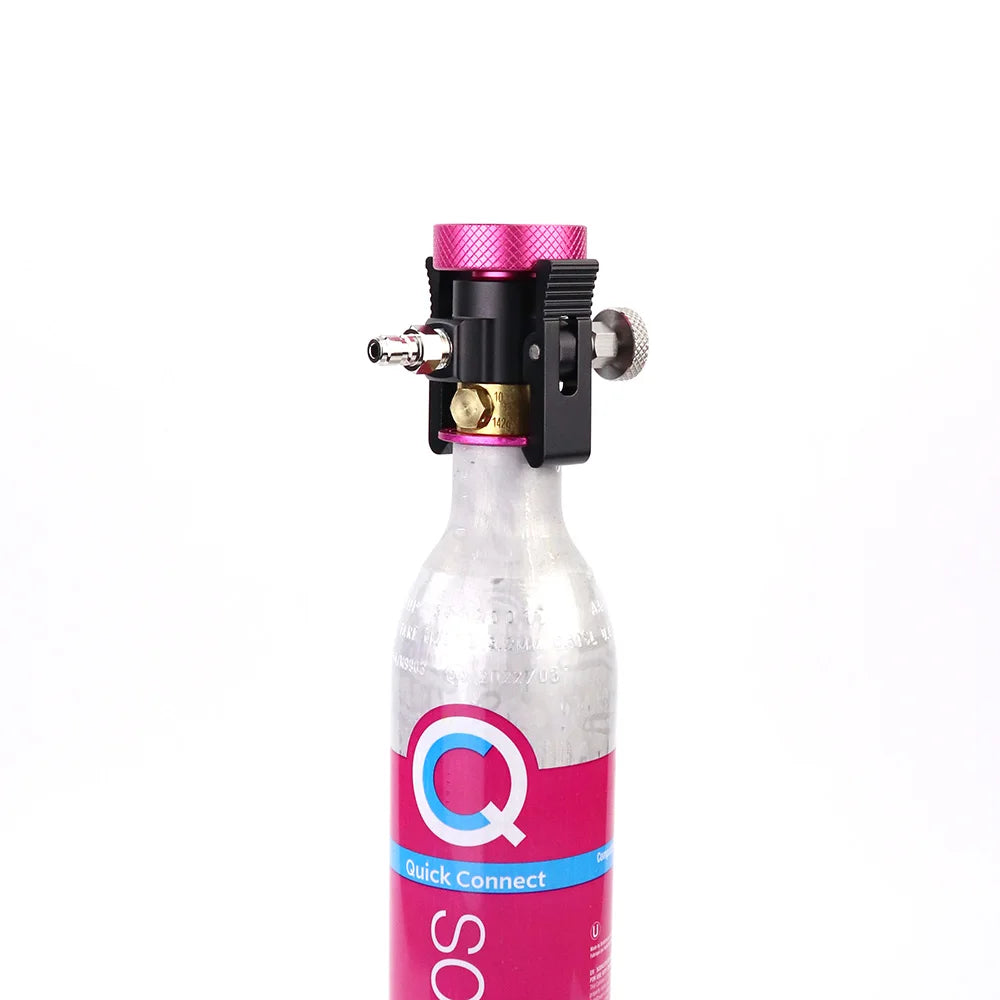

• Item will fill CO2 from larger bulk cylinder into Soda Pink Quick connect CO2 cylinders.
• Fill adapter with lock catch , can prevent the CO2 cylinder from coming off in operation , More secure. (It is very dangerous for the CO2 tank to come off during filling）.
• Item can filling CO2 tank to maximum limit.

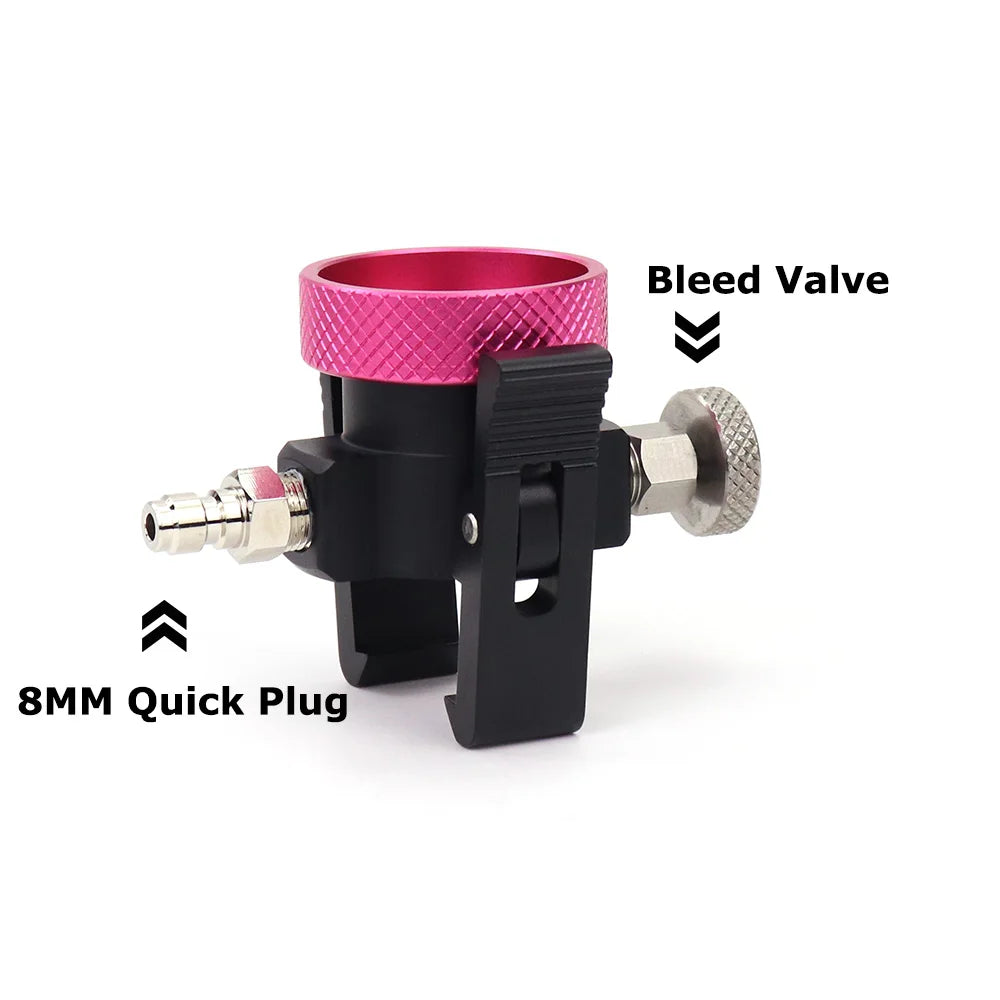

• Fill adapter has On/off knob can input and output for Pink cylinder.

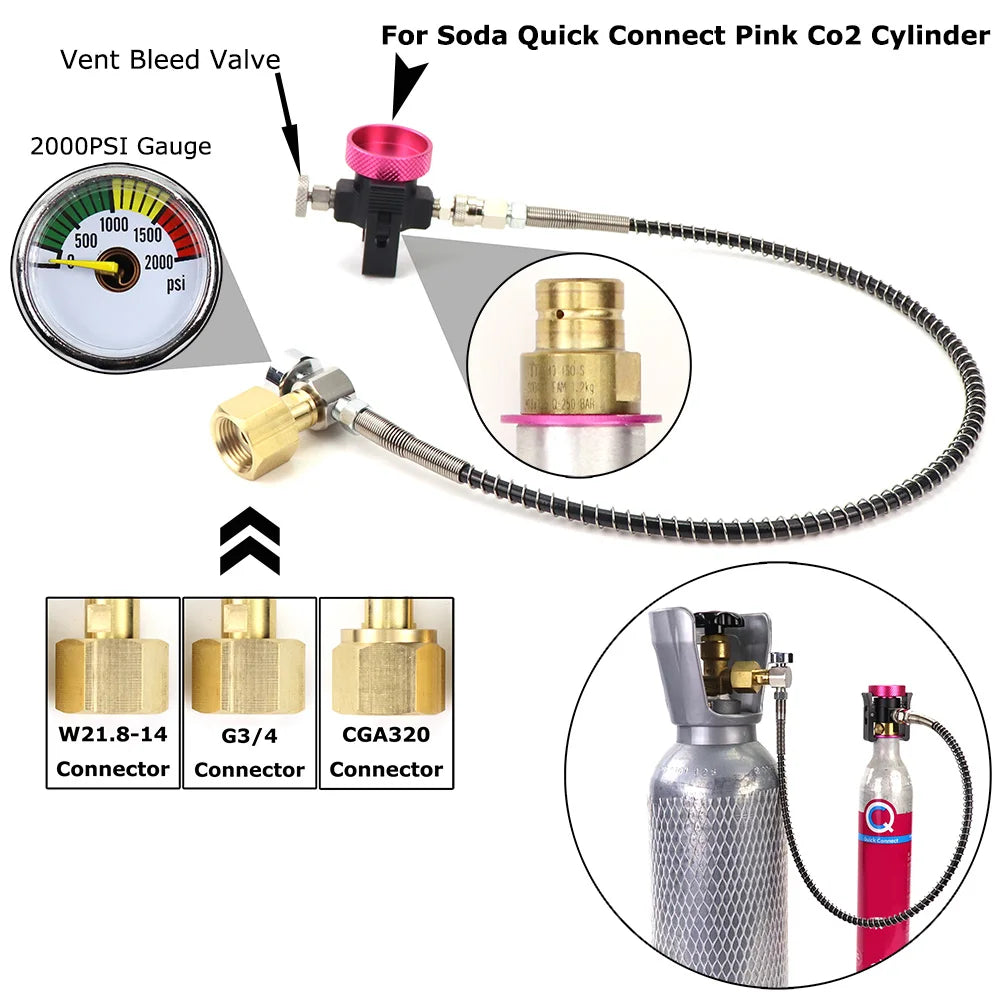

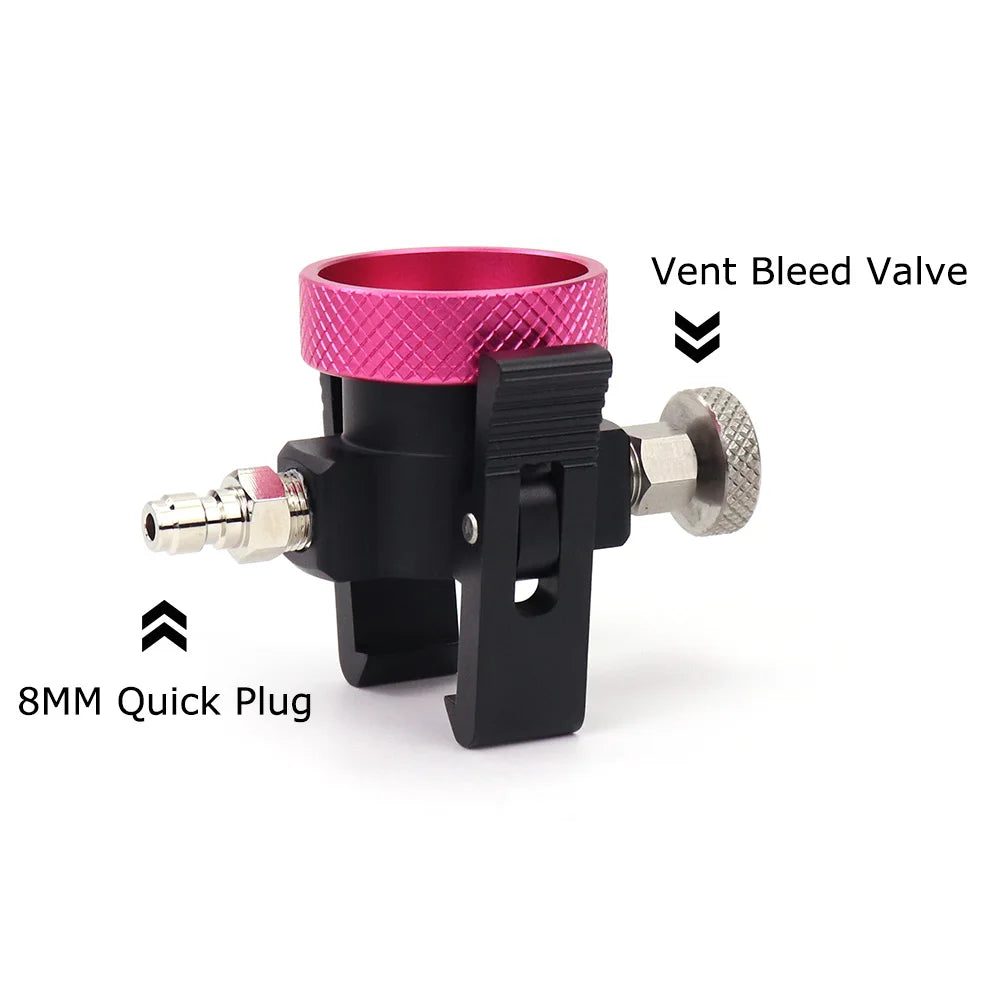

• Stainless Steel Vent Bleed Valve.

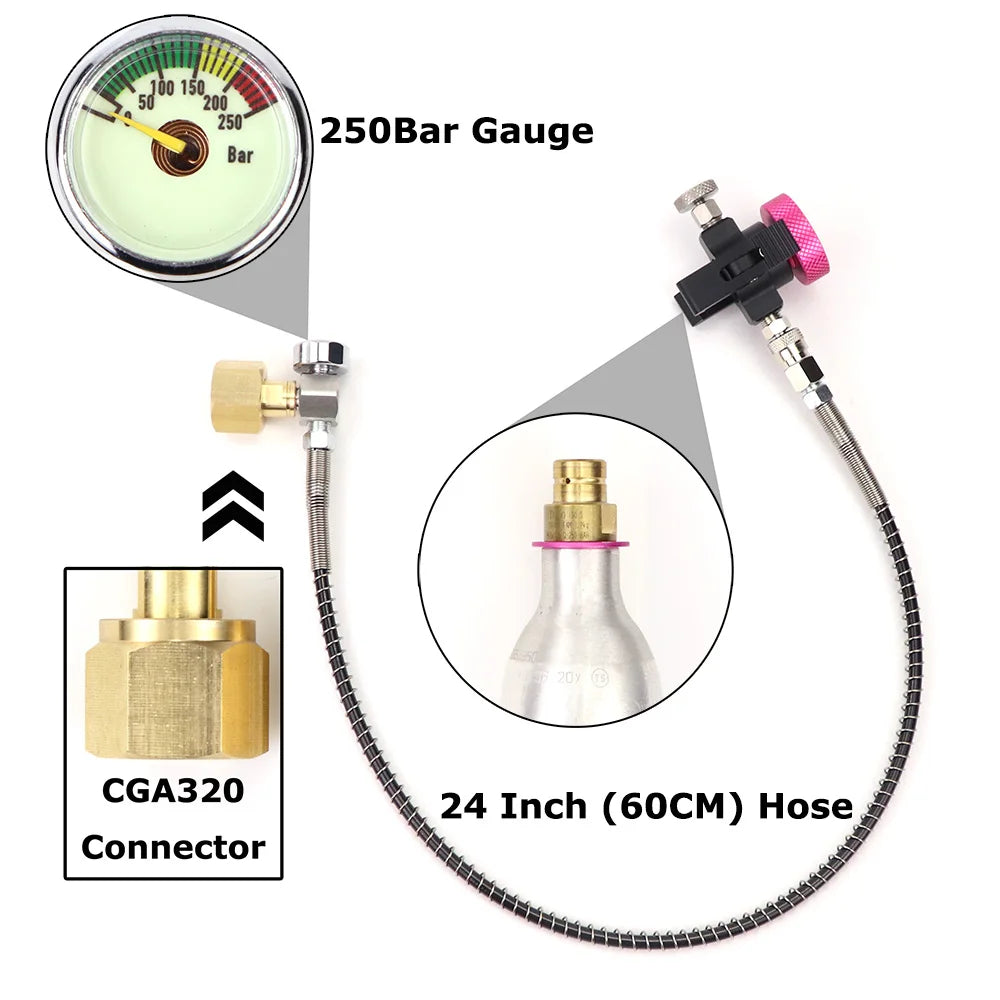

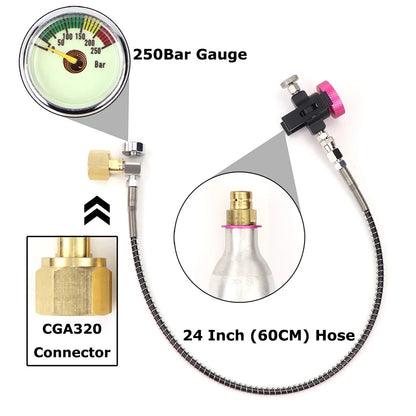

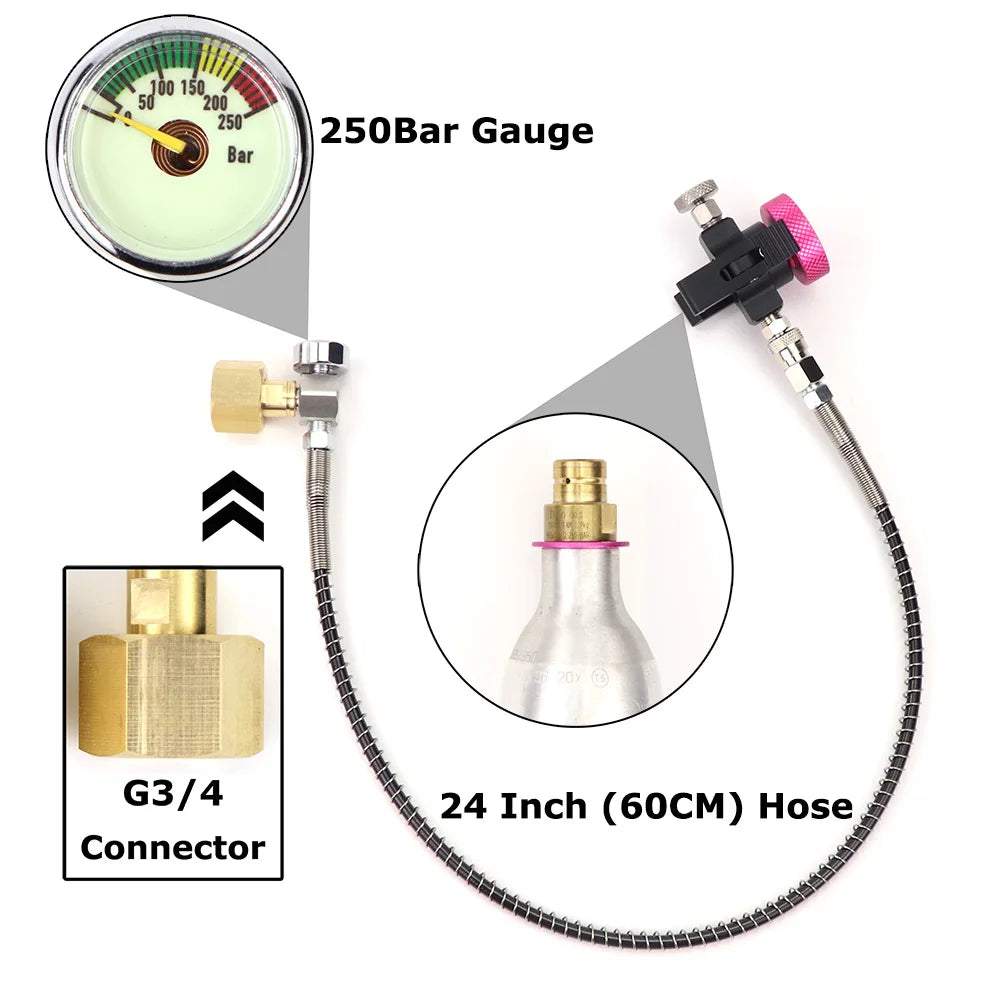

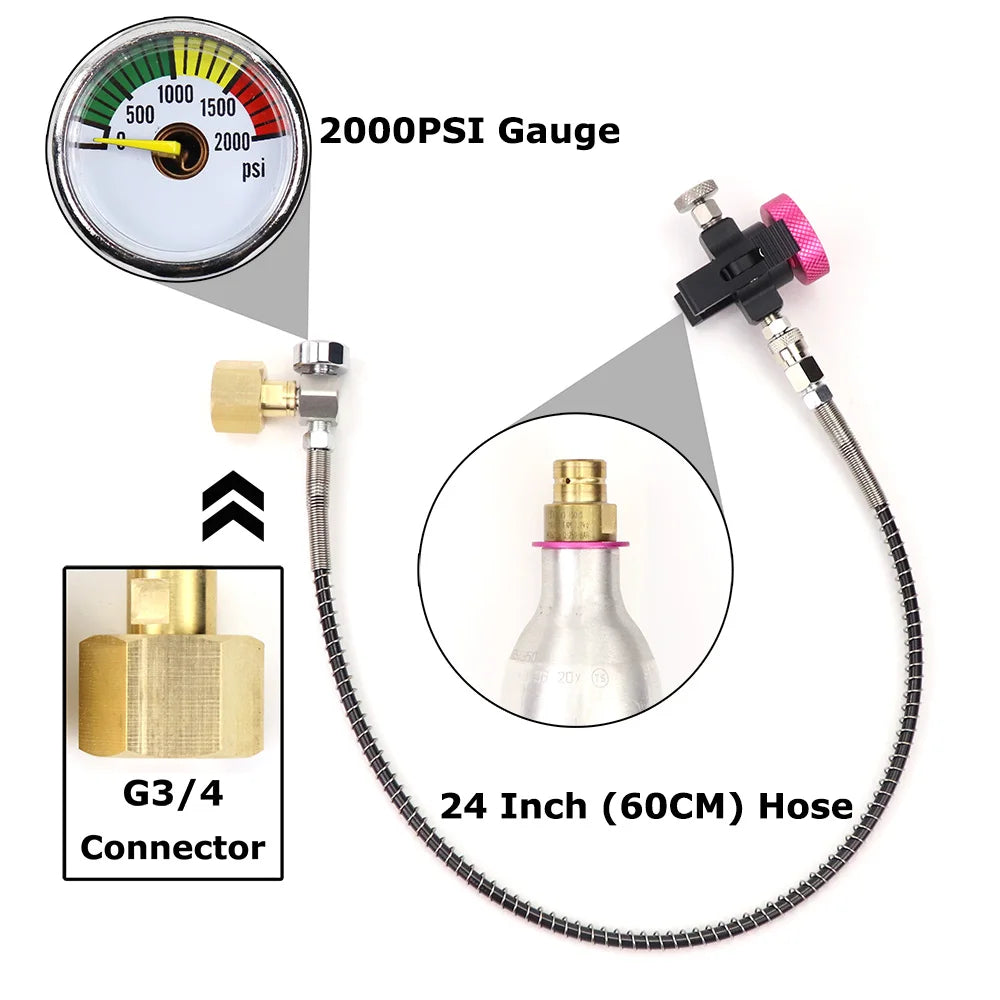

• 24inch (60cm) high pressure hose with reinforced spring cover.

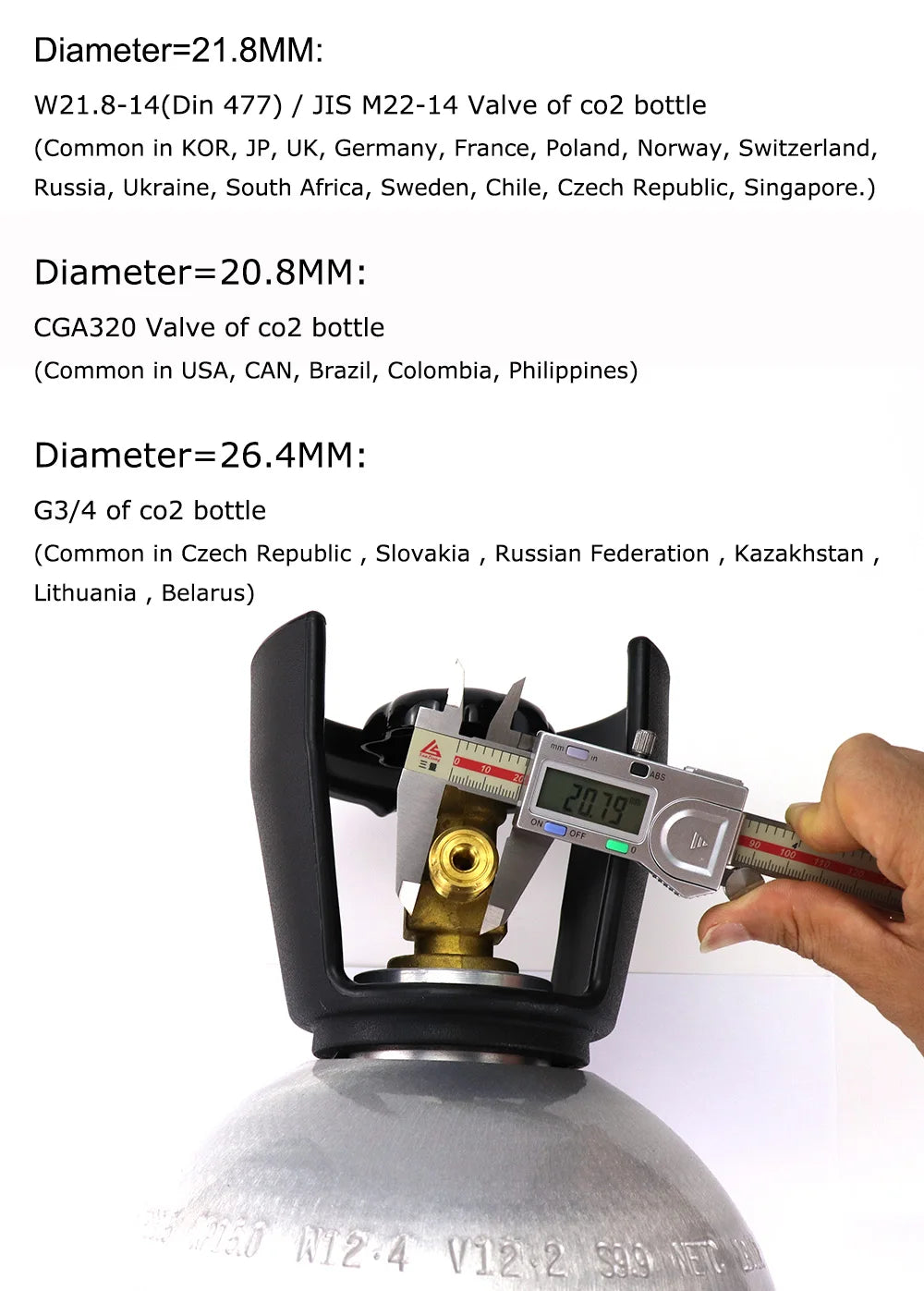

• Allows CO2 Tank Cyclinder Valve Connector Thread W21.8-14(DIN477) Or CGA320.

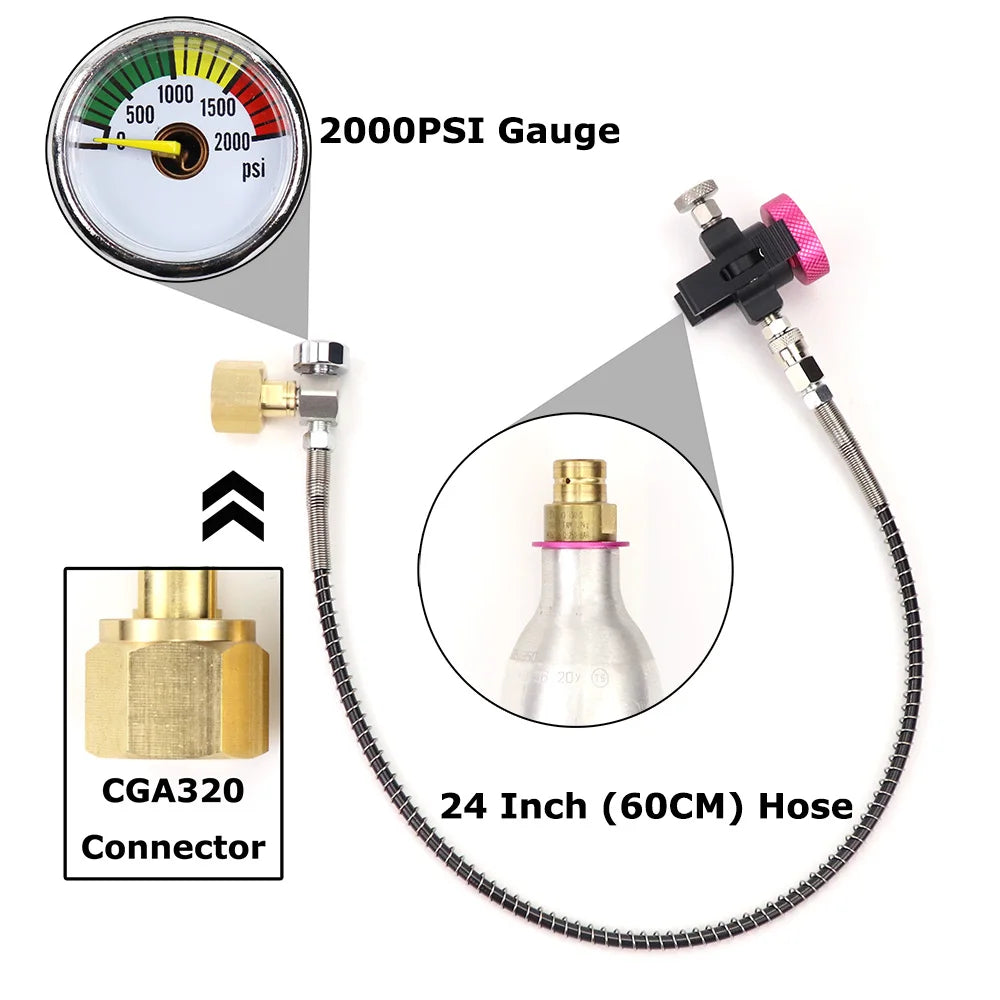

• CGA320 connector CO2 Tank Common in USA, CAN, Brazil, Colombia, Philippines.

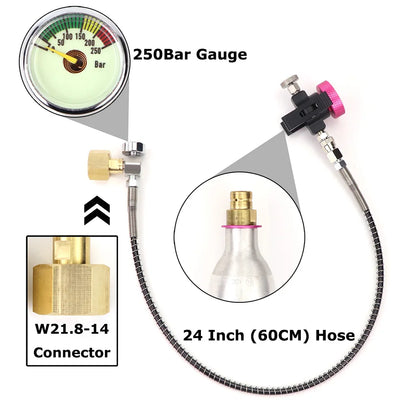

• W21.8-14(DIN 477) connector Compatible With JIS M22-14, Common in KOR, JP, UK, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore.

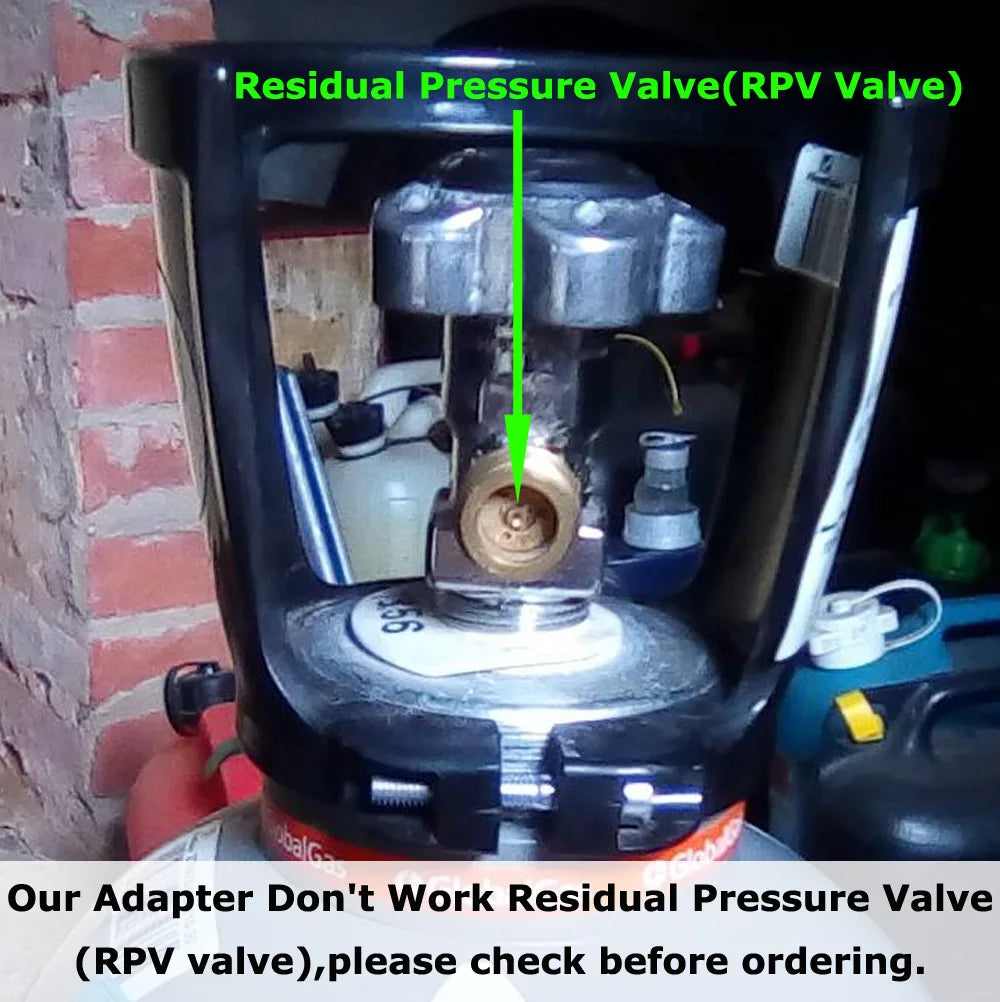

• Our Adapter Don't Work Residual Pressure Valve (RPV valve),please check before ordering.

 How it work:

1. Screw the adapter to a larger CO2 gas cylinder.
2. The empty Soda CO2 cylinder connect to the Refill adapter.

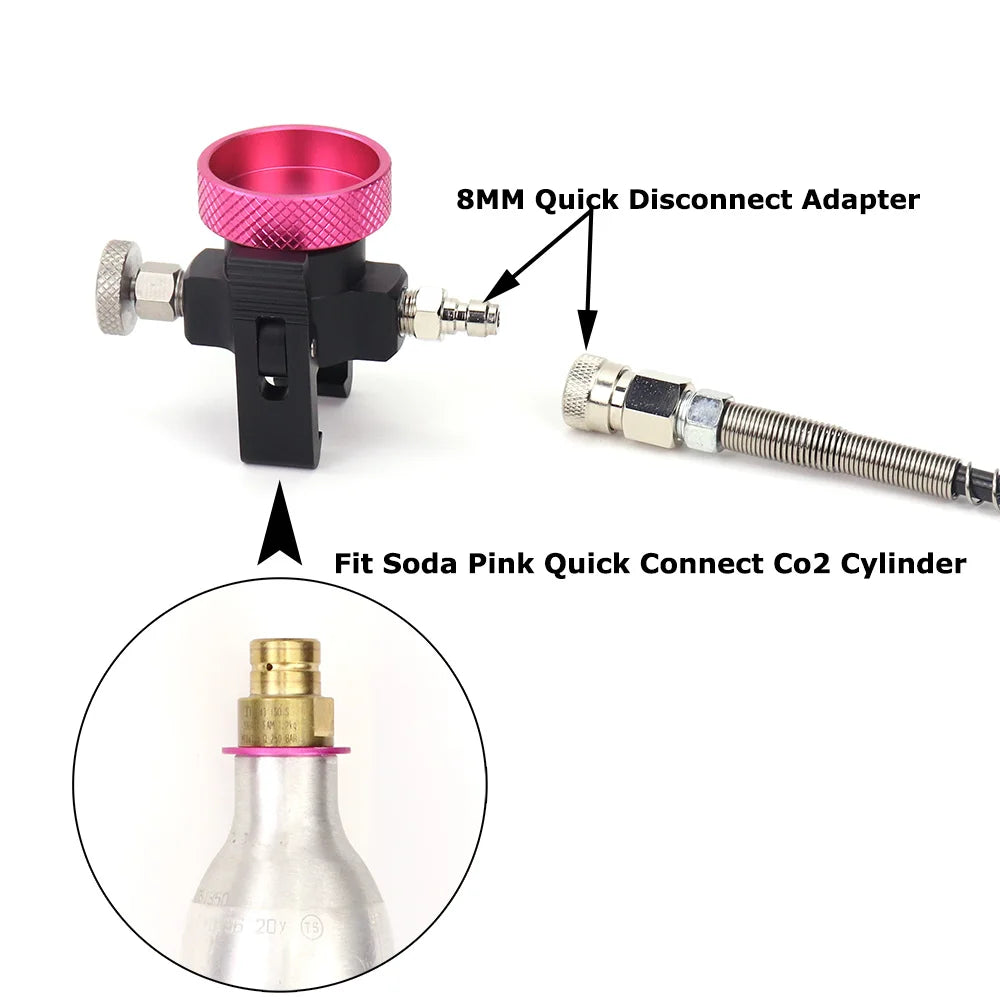

3. Connect quick disconnect.
4. Open the valve of the large gas bottle.
5. Wait for the cylinder is completely fill,  about 30 sec.
6. Close valve of the large gas bottle.
7. Close Knob of the Refill Adapter.
8. Opening the Vent bleed valve screw to drain residue remaining gas.
9. Unscrew the CO2 cartridge – done.
